Fully Programmable Signalling: Proportional/Fixed, High Loudness Acoustic Alarm; Proportional/Fixed, High Brightness Optical Alarm; Vibration Alarm for Discrete Screening
Advantages & Benefits
- Programmable Sensitivity
- Extended Continuous Operation Time
- Automatic Low Power Mode during Screening Pauses
- Embedded Long Life Rechargeable Batteries are renewable energy and wipe out Operation Cost of Alkaline Batteries
- Embedded Fast and Reliable Battery Charger: no need of batteries removal

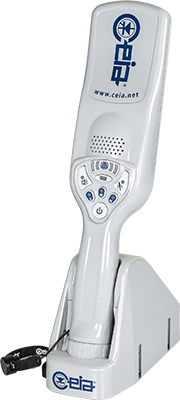

- Dedicated Holder acts as Minimum Space Table Stand and Mains connection for Battery Charge
- Operator Functions can be standard or customized by the user through PC GUI and USB connection
Compact elegant, robust and ergonomic

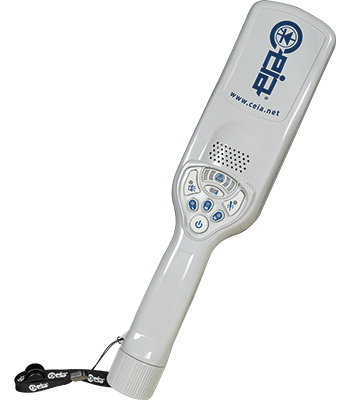

The PD140N features a special ergonomic design consisting of an offset hand grip which ensures that the operator’s hand does not interfere with the sensitive detection area. This means fewer scans per person and therefore shorter inspection times per person.
Special care has gone into the mechanical design of the detector. Absence of sharp edges or corners allows the detector to be passed smoothly over the inspected area without getting caught in buttons, buckles, folds or other parts of clothing.
NIJ Standard 0602.02 compliant
The technical features of the detector comply with the NIJ standard 0602.02 and the new NIJ draft standard 0602.03. The PD140N has uniform sensitivity to magnetic and non-magnetic targets including those made of stainless steel. At the same time the detector offers excellent body-effect compensation and has high immunity to external disturbance from electromagnetic and mechanical sources.
Full digital design
The PD140N is fully digital. Electronic functions include an inspection field transmitter- receiver based on Digital Signal Processing (DSP) technology, a digital operator interface and external communications over the incorporated USB port. This design combined with a special printed antenna ensures top reliability and very high repeatability.
Advanced control panel
The control panel with switches and warning lights is made from high-thickness silicon guaranteeing high degree of protection to make the PD140N suitable for indoor and outdoor use.
Extended continuous operation time
The PD140N metal detector is powered by two AA-size NiMH batteries with a battery life of over 100 hours. A Low Power Mode is automatically activated during pauses, extending the battery life up to 200 hours. An internal circuit optimizes battery recharging which takes less than five hours.
Latest plastic materials technology
The metal detector casing is made from next-generation technical polymers. These plastics offer high chemical resistance and mechanical strength ensuring a long detector life even in heavy duty conditions.
Advanced configuration capability
